"Controlled Devices" Engine Fan Relay & Part Numbers


lonewolf11
V-6 Camaros rule!
Posts: 105
Joined: 04/09
Posted: 07/09/12 10:30 AM

Recently I have replaced all of my Sensors, Switches & Relays on my 1987 Corvette using AutoZone as my main parts supplier with mixed results. Since the AutoZone store is in a 4 block walking distance while the car is being worked on AutoZone was the logical choice. Now I am questioning the choices of part number's that AutoZone claimed to be the correct replacement parts. Let me also say I have also replaced all "pigtails" & connector's for each item as well. Here is the dilemma, At first I was getting a dash reading of "LO" then it would shoot straight to 299 degrees, and no temp readings in-between. Cutting thru the BS I am researching the OEM Part number's to match with the AutoZone Part number's and finding this a difficult task. I may need to mention this tid-bit also- This is a brand new block and everything is new about this motor with the exception of the TPI set-up (runner's, plenum, intake manifold & throttle body used from the original L98 factory motor) & Distributer, which I have replaced all internal parts inc. the Pick-up Coil. Anyone with a solution whether it is in being able to match the OEM part #'s to the AutoZone part #'s or what part #'s should be used would be greatly appreciated. BTW, let me say also that I just replaced the "new" MAF Sensor Power Relay & MAF Burn-Off Relay with the original ones to see what would happen & now I get no dash reading other than "LO" and NO Temp readings outside of this. Maybe I should go back & put the new ones back in? What I am really trying to find out is how can I get my dash readings to show what the actual temp is? I am thinking it has to do with the Engine Fan Relay located on the inner fender, driver's side, that AutoZone may have given me a wrong part # to replace with.
Gregorio Lonewolf

Post Reply
waynep71222
My first time was in a Chevy
Posts: 241
Joined: 04/12
Posted: 07/09/12 11:11 AM

SENDER,ENG COOL Temp/GAUGE    this goes in the left cylinder head.
Part Number:  25036135
Product Notes:  Engine Cool Temperature Gauge Sensor
1 blade terminal, 3/8-18 thd
Per Vehicle: 1; Years: 1984-1989
25036135

SWITCH ASM-FAN TEMPERATURE-HIGH    this goes in the right cylinder head.
Part Number:  D1852B
Product Notes: Coolant Fan Switch
Per Vehicle: 1; Years: 1985-1991
D1852B


SWITCH ASM,ENG COOL TEMP IND
Part Number:  213-4793
Product Notes:  Engine Cool Temp Indicator Switch
2DR ; Gauge, 3/8in x 18 thread
Per Vehicle: 1; Years: 1984-1991
921647842 125

PROBE ASM-LOW ENG COOL IND    this sticks in the side of the plastic tank radiator.
Part Number:  10054615
Product Notes: Low Engine Cool Level Switch
Per Vehicle: 1; Years: 1986-1989
10054615

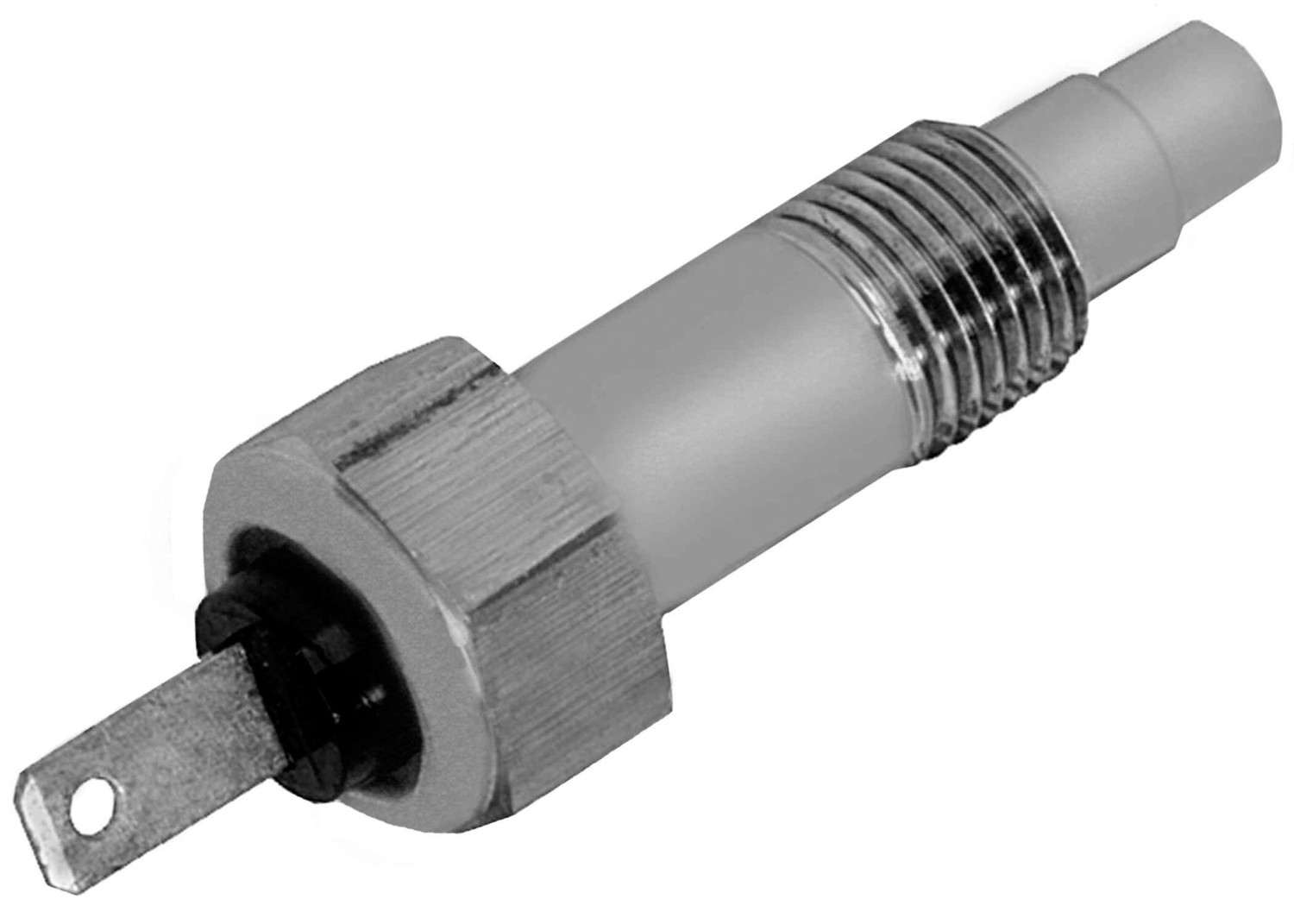

SENSOR ASM-OIL TEMP
Part Number:  25036292
Product Notes:  Engine Oil Temp Sensor(VPI 1-877-846-8243)
1 blade terminal, 1/4-18 thd
Per Vehicle: 1; Years: 1984-1989
25036292


ACDELCO PROFESSIONAL

SENSOR ASM,ENG COOL TEMP   these fit in the front of the intake manifold.
Part Number:  213-4396
Product Notes:
Coolant Temperature Sensor
Per Vehicle: 1; Years: 1985-1991
213 4396

SENSOR,ENG COOL TEMP
Part Number:  213-928
Product Notes:
Engine Cool Temp Sensor
Und plenum ; Used for clusters w/oil ga & light combination ; Use; w/12101899 conn ; 2-Way male
Per Vehicle: 1; Years: 1986-1991
213 928

Post Reply
lonewolf11
V-6 Camaros rule!
Posts: 105
Joined: 04/09
Posted: 07/09/12 11:19 AM

Thanks Wayne. I will look these up to see if they match what I got from AutoZone.
Gregorio Lonewolf

Post Reply
waynep71222
My first time was in a Chevy
Posts: 241
Joined: 04/12
Posted: 07/09/12 11:26 AM

most parts catalogs DON'T know where the parts fit.. as the people inputting the data don't have a clue except what's printed in front of them.. now a day.. they are just warm bodies who can type.
some i think don't like their work and are trying to destroy the company they are entering data for..

245828087

1 **081348 HOSE HTR INL (NOT AVAILABLE) 87

2 **082470 FITTING INT MANIF VAC (IN PLNM) 87

3 **108443 PLENUM INT MANIF (NOT AVAILABLE)

4 **105379 GASKET THROT BODY 87

5 BODY THROT (SEE CAT) (NOT AVAILABLE) 87

6 **084405 SCREW AIR INT DUCT FRT (NOT AVAILABLE) 87

7 **326386 SENSOR MANIF AIR TEMP (1.150),(@8153263860) 87

8 **029463 HARNESS INT AIR TEMP SEN WRG 87

9 **337892 BOLT U NUT & STUD (M5X.8X10)(3.671),(03.671) 87

10 **027015 RETAINER ENG CONT MDL(PUSH-ON) 87

11 **999194 MODULE ENG CONT(REMAN) 87

11 EPROM ECM,(SEE CAT) (NOT AVAILABLE) 87

12 **080604 BRACKET FUEL CONT MDL (NOT AVAILABLE) 87

13 **7347 NUT SPL ANC (NYLON)(SQUARE HOLE),(01.267) 87

14 **080605 COVER CONT MDL HSG (NOT AVAILABLE)

15 **067918 BRACKET MASS AIR FLOW SEN RLY (NOT AVAILABLE)

16 **089936 RELAY MASS AIR FLOW SEN (1.055) 87

17 **089936 RELAY MASS AIR FLOW SEN (BURNOFF)(1.055) 87

18 **046113 HARNESS EGR VLV VAC (NOT AVAILABLE)

19 **073479 BRACKET I/P WRG HARN DIAG CONN 87

20 **021766 COVER I/P HARN DIAG CONN (NOT AVAILABLE) 87

21 **45516 VALVE CRUISE VAC & TRANS CONV REL 87

22 **075405 RETAINER VAC REL VLV,(03.887) 87

23 **97195 SOLENOID EGR CONT VLV RLY (CMPTS SERV) (NOT AVAILABLE)

23 **77880 FILTER EGR CONT VLV RLY SOL (3.140),(03.140) 87

23 **85870 CLIP FLTR RET 87

24 VALVE ASM COLD START (SERV BY) (NOT AVAILABLE)

24 **110860 PIPE KIT COLD START F/INJR,(03.329) (NOT AVAILABLE)

24 **112061 PIPE KIT COLD START F/INJR,(03.329)

24 **111954 SEAL COLD STRTR F/INJR PIPE(O-RING),(03.329) 87

25 RAIL ASM F/INJ(SEE GROUP 3.000 "FUEL INJECTOR RAIL MPFI (MODELS F8A,R810)" FOR DETAIL ILLUSTRATED VIEW.) (NOT AVAILABLE)


26 **090618 PLATE CONT MDL WRG HARN RET,(03.675) 87

27 **067670 HARNESS ENG/ECM (M.T. C60) (NOT AVAILABLE)

27 **067671 HARNESS ENG/ECM (M.T. C68) (NOT AVAILABLE)

27 **067672 HARNESS ENG/ECM (A.T. C60) (NOT AVAILABLE)

28 **082463 HARNESS AIR INJ CONT VLV VAC (NOT AVAILABLE) 87

29 **128261 MODULE ELEK SPARK CONT 87

30 **067918 BRACKET MASS AIR FLOW SEN RLY (NOT AVAILABLE)

31 **078915 RELAY F/PUMP (3.140),(03.140) 87

32 **087644 BRACKET F/PUMP RLY (NOT AVAILABLE)

33 **078915 RELAY M.T. O/D OVERRIDE SW (3.140),(03.140) 87

34 **087643 BRACKET TRANS O/D SW RLY (NOT AVAILABLE)

35 **532158 VALVE HTR WAT FLOW CONT 87

36 **70030 CLAMP WORM GR (15.7 T0 31.8) SST 87

37 **108509 HOSE THROT BODY HTR (NOT AVAILABLE) 87

38 **081880 SEAL MASS AIR FLOW SEN (NOT AVAILABLE)

39 **094712 SENSOR MASS AIR FLOW 87

40 **186112 CLAMP WORM GR (65.1 TO 89.9) SST,(03.417)
Replaced by: **415470 87

41 **081891 DUCT AIR INT RR (NOT AVAILABLE) 87

42 **146826 CLAMP RR INT AIR DUCT,(UPC/FNA: CLAMP,RR AIR INT DUCT),(3.31 TO 4.25) 87

43 **084404 DUCT A/CLNR FRT AIR MTR INT (CMPTS SERV) 87

43 **081885 PIN A/CLNR FRT AIR INT DUCT RET (NOT AVAILABLE) 87

43 **081886 RETAINER A/CLNR FRT AIR INT DUCT (NOT AVAILABLE) 87

44 **042562 ELEMENT A/CLNR (A917C) 87


45 **081889 COVER A/CLNR (NOT AVAILABLE) 87

46 **081888 SCREW A/CLNR CVR (NOT AVAILABLE)

47 **090619 RETAINER FRT AIR INT DUCT 87

Post Reply
lonewolf11
V-6 Camaros rule!
Posts: 105
Joined: 04/09
Posted: 07/09/12 11:30 AM

So Wayne, where is this one located as this may be the culprit;

SWITCH ASM,ENG COOL TEMP IND
Part Number:  213-4793
Product Notes:  Engine Cool Temp Indicator Switch
2DR ; Gauge, 3/8in x 18 thread
Per Vehicle: 1; Years: 1984-1991

The one that goes under the Plenum, it is new, but having a small flame shoot out of the plenum & thru the Throttle Body, with the intake housing & air filter removed, could the sensor inside the plenum been burned up & now needs to be replaced again?


SENSOR,ENG COOL TEMP
Part Number:  213-928
Product Notes:
Engine Cool Temp Sensor
Und plenum ; Used for clusters w/oil ga & light combination ; Use; w/12101899 conn ; 2-Way male
Gregorio Lonewolf

Post Reply
waynep71222
My first time was in a Chevy
Posts: 241
Joined: 04/12
Posted: 07/09/12 11:49 AM

27544223

wayne things that the cataloging person got #78 and #27 reversed... follow the wire colors from the wiring diagram..   the right side switch usually has a round black mushroom head with a single round terminal inside.. this is the radiator fan switch.. actually turns on the second radiator fan motor on TPI models with 2 radiator fans.. this is a switch.. its OPEN below 228F..  which means you have to microwave a small sample of antifreeze to get it above the boiling point of water..  please be careful if you want to test this..

the single blade temp sender is for the GAUGE on the dash board...  usually has a GREEN wire..
goes in the left/drivers side cylinder head.. between the #1 and 3 spark plugs..  has variable resistance between the blade terminal and the brass body..

item 65 is the Engine coolant temp sensor... it has an OVAL connector.. 2 pins..  is NOT connected to the shell of the sensor from either pin...  it has variable resistance.. is usually hooked up with a black wire and a yellow wire...  if you unplug the sensor.. it will set  code 14 or 15... if you short the two wires together.. it will set the other code..

item 57 is a big brass hex sensor .. has a fuel injection type connector on the top.. its for the COLD start injector...  it has its own page of testing.. it will almost always say BOSCH on it..


1 **055728 PIPE EGR VLV (NOT AVAILABLE) 87

1 **055729 SHIELD EGR PIPE (120X290MM W/20MM HOLE) (NOT AVAILABLE) 87

1 **055730 SHIELD EGR PIPE (100X120MM W/NO HOLE) 87

2 **087415 SWITCH EGR VLV TEMP IND 87

3 **055726 GASKET EGR VLV PIPE


13 **89349 GROMMET CR/CASE VENT-LH (3/4 IDX1 1/8 OD SQ) 87

14 **036553 SWITCH OIL PRESS

15 **078987 FITTING ENG OIL PRESS GA SEN TO BLK (NOT AVAILABLE)

16 **078988 FITTING ENG OIL PRESS GA SEN TO BLK FTG,(01.803) (NOT AVAILABLE)

17 **078954 SENSOR OIL PRESS GA (1 BLADE TERM)

27 **036292 SENSOR TEMP

57 **084318 SWITCH COLD START F/INJR,(03.329) Replaced by: **244930

65 **326386 SENSOR CLNT TEMP (ECM FUNC) (1.150),

78 **036135 SENSOR ENG COOL TEMP GA

Post Reply
lonewolf11
V-6 Camaros rule!
Posts: 105
Joined: 04/09
Posted: 07/11/12 10:38 AM

Thanks, this is so helpful. As always you come thru.
