idk what to do


renelopez0713
I love my Chevy Chevette!
Posts: 5
Joined: 05/14
Posted: 05/28/14 02:11 PM

Im having probs with my 96 camaro. I have no fuel going in I bought a new fuel pump still no fuel. And also I have no power in any of the fuses by the dash but the ones under the hood do have power some one help.me please idk what elese to do

Post Reply
wayne712222
V-6 Camaros rule!
Posts: 90
Joined: 11/13
Posted: 05/29/14 01:23 AM

clean the battery cables.. clean the post into the under hood fuse block...

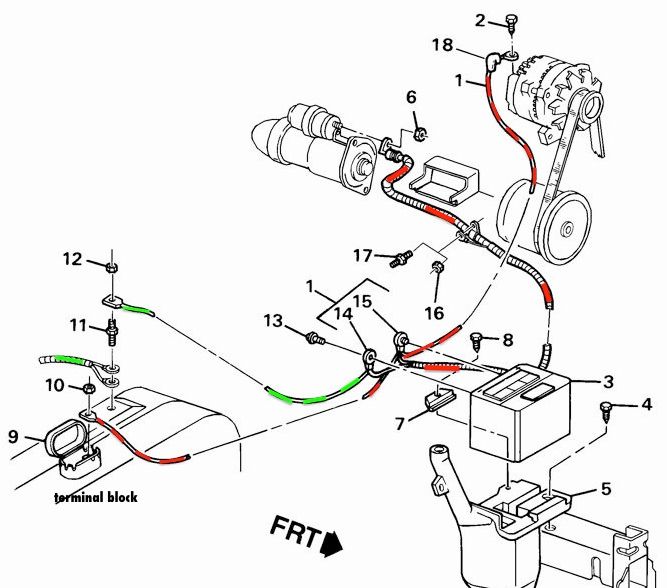

see #9 in this image..  that is the terminal block and the source of all the power in the car...

#10 in the terminal block probably has 2 studs.. one from the battery.. and the other into the main harness.. where it goes to the fuse boxes..

94 97 F Bodybatterycables Zpsdd0e0d53

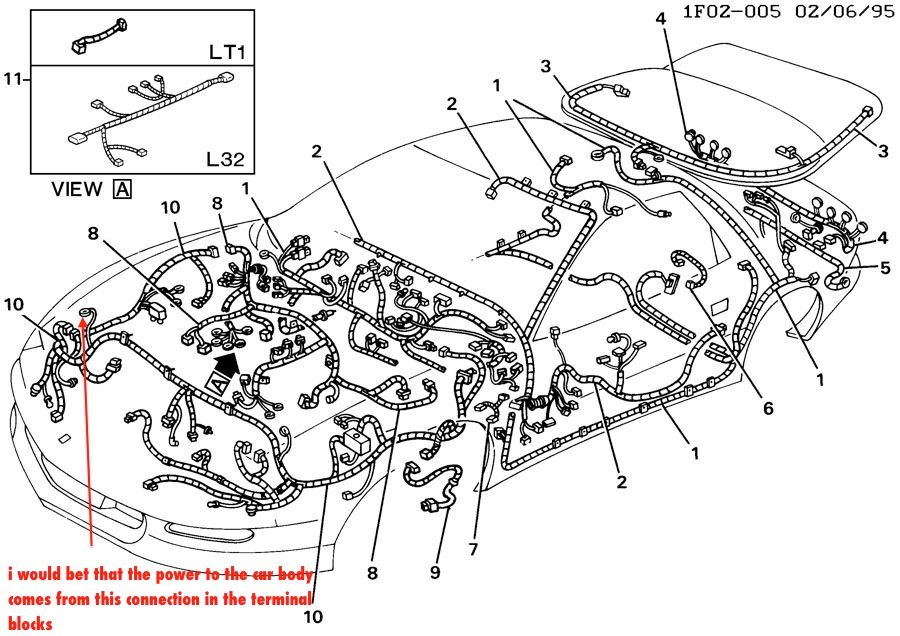

you can see the red arrow. i pasted in. that is probably where the terminal block is..

94 97 Fbodywiringbody Zps86141187

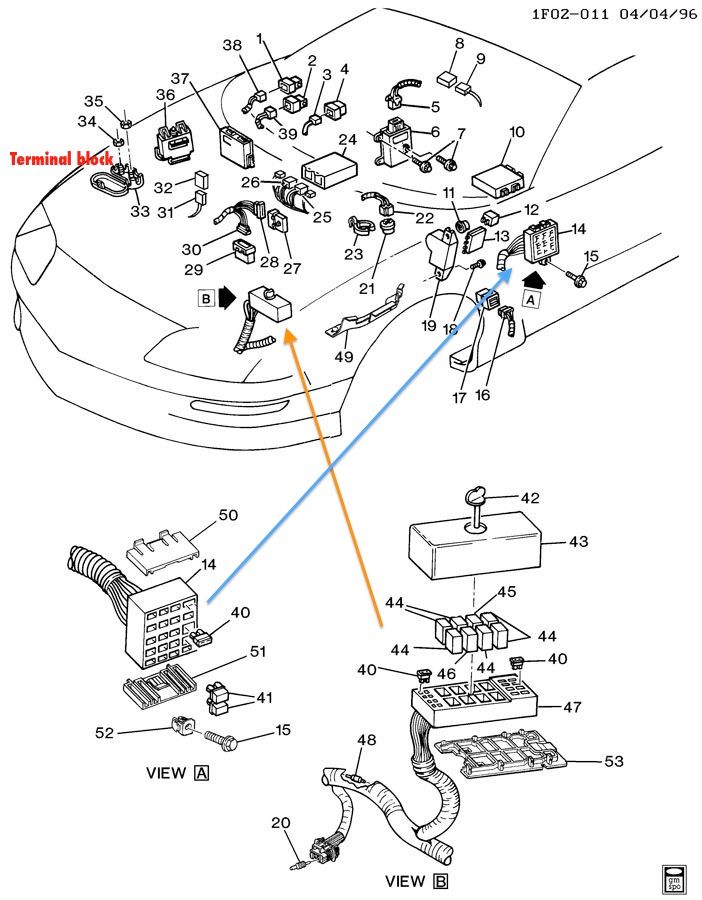

94 97 Fbodyfuses Zps51a27ce7

check for power at the terminal block..

Post Reply
wayne712222
V-6 Camaros rule!
Posts: 90
Joined: 11/13
Posted: 05/29/14 01:43 AM

please also clean the negative battery connections.. they are at Stud 11 in the first image and also one on the front of the bottom of the block..

do you have a digital volt meter... since you don't have the ability to start the motor.. please perform the 4 part test with the headlight switch on anyway...

Voltagedroptesting
