95 Starts fine, chokes when accelerated cold, accelerates fine @143deg


Teal95C4
I love my Chevy Chevette!
Posts: 7
Joined: 09/13
Posted: 09/21/13 10:24 AM

My C4 spits and sputters on acceleration until the coolant temp reaches 143 degrees and then it accelerates fine. Idle at cold is okay and a very slow acceleration is okay. It starts fine when it's cold; however, twice I have turned it off when it's hot and could not start it until the coolant temp dropped below 143 degrees. It may not be tied to the coolant temp, but it sure acts that way.

I guess I'm caught in OBD1/2 Purgatory, as well. Sixteen pin connector, but not really an OBD2 system (only get ERROR reading)... So, no answers there. If anyone knows how to read the codes on this puppy, I would hope you would share.

Post Reply
waynep712222
My first time was in a Chevy
Posts: 129
Joined: 03/13
Posted: 09/21/13 11:03 AM

start by changing the engine coolant temp sensor...

at AZ stores they have a SU102 kit for under 20 bucks.. that comes with the engine coolant temp sensor and the pigtail..  either could be bad.. and is a cheep place to start... since the one on the car is about 18 years old...

Su102

if you change this on a cold motor.. without loosening the radiator cap.. you can change it while only loosing a few table spoons of coolant..

this tells the computer how hot the engine coolant is... not usually the dash board..

one of the delco part numbers for the engine coolant temp sensor is.
SENSOR,ENG COOL TEMP
ac delco Part Number:  213-928
Product Notes:
Engine Cool Temp Sensor
Use; w/12101899 conn ; 2-Way male
Per Vehicle: 1; Years: 1993-1996

the above sensors are usually easily changed... and do fail like you describe...  on other forums here.. LT1 owners have spend thousands of dollars and it ended up being the 20 buck part...



on most models.. the gauge has a separate sender

i did see some 3 terminal temp sensor switches that i have not run across yet..

ac delco SENSOR,ENG COOL T/GA
Part Number:  213-77
Product Notes:  Engine Cool Temperature Gauge Sensor
2 Blade Term ; Can be used as 1 term conn ; 3/8-18 thd

Per Vehicle: 1; Years: 1993-1996


Please verify that you have an LT1 car.. not the LT5 32 valve version..

Post Reply
waynep712222
My first time was in a Chevy
Posts: 129
Joined: 03/13
Posted: 09/21/13 11:14 AM

as for the scan tool

where do you live at.?? so i can see if i can find one for sale on craigs list and post the link..

i put up a post about scan tools for the C4 corvettes..

you are going to want to find either a late OTC extended monitor.. with the OBD2 cables and probably a 1997 pathfinder cartridge..

that would be about the least expensive used if you can find a set..

there are otc genisys models..

there are snap on MT2500 models..

you might want to see if you can find a deal on the OTC 3499N kit as that scan tool does OBD1 and OBD2 cars.. so you should be covered..


if you have a factory service manual...

there should be a way to access the codes by pushing buttons.. but it takes a flow chart that i don't have...
http://forums.corvettefever.com/70/8585187/c4-corvettes/which-used-scan-tools-for-82-to-94-corvettes-with/


i guess i will have to do some research and perhap lay out my current scan tools for photos..

Post Reply
waynep712222
My first time was in a Chevy
Posts: 129
Joined: 03/13
Posted: 09/21/13 04:35 PM

Beginning in 1994, you short pin "12" to pin "4" and once again turn the ignition switch to "On" without starting the engine.

The speedometer will display any codes using the same protocol as the 1990-1993 model but there are some changes in the designation for the modules plus additional modules are added:

Module "1" is still the CCM module.

Module "4" is now called the PCM module (Powertrain Control Module) because automatic transmission computer control was added to Engine Control Module in 1994.

Module 7 (on the 1996 model only) is the RTD module. (This is the Real Time Dampening module which replaced the Selective Ride Control module in 1996).

Module 9 is the ABS/ASR module number from 1994 through 1996.

Finally, Module "A", the DERM (Dynamic Energy Control Module --- the air bag control module) will be requested to show any codes.

Just like the 1990-1993 display, you read the codes on the speedometer and read the module number on the trip odometer.

Again, you can cause the codes to repeat by turning the ignition off for five seconds and then back on.

Turn the ignition off and remove the short to restore normal operation.


wayne thinks that there is a way to command the dash board to give you data from the modes above by pressing a specific combo of buttons..

see this caddy chart.. it works on caddy models... and they use a similar computer setup to the corvette...

86 89Cadillacdiag1

###############

1996 to 2004 Corvette (OBD II):

Turn IGN ON, ENG OFF.
ON DIC, Press RESET button to clear any warning messages.
Press and hold OPTIONS.
While holding OPTIONS, press FUEL four times within 10 sec.

Go into an AUTOMATIC mode to shows all parameters: PCM-TCS-RTD-BCM-IPC-RADIO-HVAC-LDCM-RDCM-SCM-RFA. If there are no problems, you will see "NO MORE CODES" on the ICP display.

The computer displays two kinds of codes, CURRENT and HISTORY, designated "C" or "H". A CURRENT code indicates a malfunction is present in the system whose module is displaying data. A HISTORY code indicates a past problem.

When the screen displays MANUAL DIAGNOSTICS, select the desired module by pressing the OPTIONS button to go forward or the TRIP button to go back. Press GAUGES to go forward or FUEL to go back.

To exit the diagnostic mode at any time, press E/M. If you want to erase or CLEAR codes, press RESET.


Post Reply
Teal95C4
I love my Chevy Chevette!
Posts: 7
Joined: 09/13
Posted: 09/22/13 08:20 AM

Thanks for the Info. Yes, I have the LT1 engine. I changed out the Coolant Temp Sensor (CTS) this morning, but no help. I noticed that when I disconnect the CTS wire, the temp reading jumps to 142 degrees. I don't know what that means, but it's interesting that my problem clears up at 143 degrees.

I saw you posted a lot of info on reading the codes. Thanks again! Once I read though it and figure out how to pull the codes on this '95, maybe I'll get closer to the real problem.

Post Reply
Teal95C4
I love my Chevy Chevette!
Posts: 7
Joined: 09/13
Posted: 09/22/13 11:07 AM

HEY! The Pin 4 & 12 short did the trick!!! Thanks! The speedometer spit out these codes. They don't seem to match the codes in the Haynes manual or the ones posted here. The codes are:
1. C12
1. - - -
4. H15
4. - - -
9. - - -
A. - - -
1.0

Wayne? Anybody?

Post Reply
waynep712222
My first time was in a Chevy
Posts: 129
Joined: 03/13
Posted: 09/22/13 11:21 AM

since the set of 95 factory service manuals are around 200 bucks... and i don't have a set...

its up to you.. as its fairly cheep to go to

http://www.eautorepair.net  and take a short subscription.  i think its 17 bucks .. and it has everything the manuals have.. just sorted in a slightly different order..

i am not trying to sell you something..

you can get the same material but sorted in a different way from http://www.alldatadiy.com


was the sensor you changed in the drivers front corner of the water pump????

Ectlocationvinpamp5 Zpsacaa9928

are you looking at the instrument cluster display.. on the speedo head... or the remote engine data display.. i forgot what they called it..

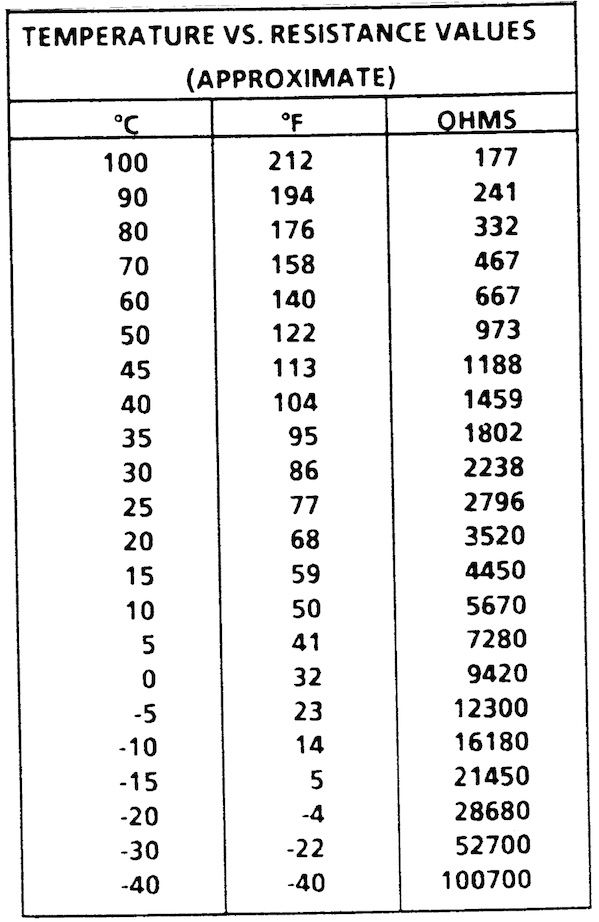

do you still have the old sensor??? here is the resistance chart for it..

Gmectresistancevalues Zpsc49d7783


i am taking that this is what you replaced...

but you just installed the sensor.. not the pigtail..

Su102

because of where these sensors are mounted up on the front of the motor.. there is some fatigue issues with the wiring harness into the pigtail connector.

Post Reply
waynep712222
My first time was in a Chevy
Posts: 129
Joined: 03/13
Posted: 09/22/13 11:41 AM

do you have your owners manual for the 95???

turn to page 2-74   it shows the analog temp gauge display.. thing with a needle thats easily viewed..

then look at page 2-75

For numeric gauge measurements,
press the GAUGES button on the Trip Monitor until COOL appears.
The number that appears next to the fuel gauge is the coolant temperature.
If LO appears, the temperature is below 32°F(0C)

this digital read out should be from the PCM and is the coolant temp sensor above..

not the temp sending unit in the head that changes the analog display...


another site says you can jump like this to get to the codes from the different modules..

94 96 C4jumperforcodes Zpsf1a7f497

Post Reply
Teal95C4
I love my Chevy Chevette!
Posts: 7
Joined: 09/13
Posted: 09/22/13 11:43 AM

I found a fantastic website at
http://tech.corvettecentral.com/2011/01/c4-diagnostic-trouble-codes/

Basically, The Modules 1, 4 & 9 give up their codes in this mode. The three dashes indicate each module is done coughing up its codes. I'm not sure what the module "A" is, but all is well in that one. The 1.0 with no dashes or code is a manual mode (for digging deeper into the errors, I believe). I have two codes C12 in Module 1 and H15 in Module 4. The "C" means Current and the "H" means history. Now, I have some work to do to get to the bottom of this problem...

Post Reply
waynep712222
My first time was in a Chevy
Posts: 129
Joined: 03/13
Posted: 09/22/13 12:15 PM

C12 is normal. No reference pulse (engine not running).

The analog gauge uses the sensor in the rt. cylinder head, the digital gauge uses the coolant sensor in the water pump that also supplies that information to the ECM.

does the digital display go to 266 or higher if you short both coolant sensor wires together?

with the sensor disconnected does the digital display show like 142..

5 volts exactly to ground one one wire...
signal return on the other..

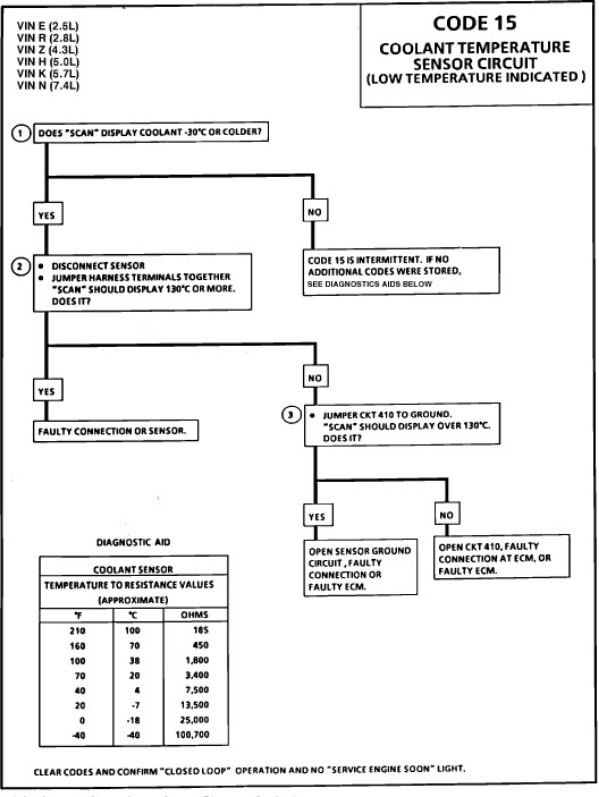

here..

Code 15 GM Zps845f536e

different car... same test...

Post Reply
waynep712222
My first time was in a Chevy
Posts: 129
Joined: 03/13
Posted: 09/22/13 12:19 PM

before going deep into diagnostics.. and its actually fun when you have the proper scan tool.

change the engine coolant temp sensor pigtail...

does not really matter on the 2 wire version which way its hooked up...

oh... and i was up all night with family.. i searched and the best deal on a new scan tool that has a 99% chance of working with any corvette 84 up.. is the OTC 3499N..

just google OTC 3499N  i found several sites with them under 400 bucks..

Post Reply
waynep712222
My first time was in a Chevy
Posts: 129
Joined: 03/13
Posted: 09/22/13 12:42 PM

a secret.. the last few job offers i have had..  my knowledge of automotive electronics is about 10 years out of date.. they are looking for people who can reflash computers and change parts not really diagnose..  i can work my way around the 2004 and up stuff.. but i don't really enjoy it.. so i got passed over for somebody with a only few years experience. instead of 30+ years..  i even went to GM training school out in burbank a few times... starting in 1980/81. for feed back carbs.. and that was before any scan tool... you shorted the then green connector to ground after you disconnected the power wire into the computer and moved it from switched power that went on with the key.. to constant power that stayed on all the times to allow you to retrieve a trouble code..

so.. i just surf the forums and take care of my family issues..

and you want to know the biggest secret... if you have not read the other forum posts here..

schedule about 3 hours of garage time... with the tools you need..  plus a stainless steel wire tooth brush.. a small box of baking soda... some disposable cups..  and a HOT water source...

take the battery out.. if its in the front drivers side.. start cleaning the battery cable ends.. take the screws out of the ends... use hot water to allow you to push the rubber boot over the top of the ring terminal.. so you can wire brush them..

there are ground and positive terminals stashed all over the engine that need to be cleaned...

you will want to find the coil bracket.. and take the ground connection off. wire brush both sides of the ring terminal..  wire brush the stud threads.. wire brush the faces where the ring terminal contacts...

Optisparkg111 Zpse3397a4f

then these

94 C Lt1batterycables Zps57ba2834

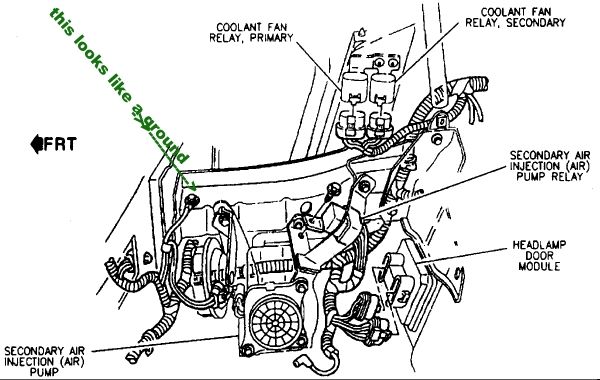

this is probably a headlight ground... or for the radiator fans..

94 C4 Coolingfanrelays2 Zps1f4d97de


C4groundlocationsbetter Zps1ad2340d

you won't believe how much better these cars work.. with clean and tight ground connections..

Post Reply
Teal95C4
I love my Chevy Chevette!
Posts: 7
Joined: 09/13
Posted: 09/22/13 02:06 PM

Wayne,
Let me catch up with your questions.

1. Yes, I changed the CTS on the water pump. Easy change with a deep ¾” socket, on the front of the side of the engine.

2. When I say the temp is 143, I am reading this off of the speedo display. The other temp gage tracks pretty well with the digital display, but I watch the digital gage every time I drive it to see when I can accelerate.

3. I still have the old sensor, but haven’t measured the resistance. (Is that important at this point?).

4. Yes, that’s the picture of what I replaced. No, I didn’t replace the pigtail. I inspected the pigtail for wear and burnt pins, but it all looks pretty good. The wires a protected by the plastic tubing about four inches from the connector.

5. Yes, on the 142 when unplugged. I’ll have to check the shorted state number (good call). I do have the pigtail if that’s the problem.

6. Thanks for the tip about the OTC 3499N.

7. WOW!!! That’s great information about cleaning the ground connections. Thanks!

Now, let me go checkout that pigtail…
Regards, Curt

Post Reply
Teal95C4
I love my Chevy Chevette!
Posts: 7
Joined: 09/13
Posted: 09/22/13 02:33 PM

Well, I did the shorted CTS connector test and the temp gage read 142 (same as Open), not the 266. I checked it several different times to make sure I had it shorted. Strange.

Plugged into the new CTS with the car cold, the digital gage (speedo) reads 78 degrees. But, unplugged or shorted, it's 142. BTW, The car won't start when it's unplugged, open or shorted.

Post Reply
waynep712222
My first time was in a Chevy
Posts: 129
Joined: 03/13
Posted: 09/22/13 04:59 PM

do you have a digital volt meter..

set it to 20 volt DC scale...

one or the other wire should have 5.0 volts DC on it..

do you have the old sensor???

did you get the one with the pigtail connector.. so you can ohm the old sensor easy..

check it against the new sensor..

see the chart slightly above...


and do you need the engine control wiring diagram???
http://www.autozone.com/autozone/repairguides/GM-Corvette-1984-1996-Repair-Guide/WIRING-DIAGRAMS/WIRING-DIAGRAMS/_/P-0900c1528008fd94

you probably need figure 9...

so.. there are 3 sensors there..

throttle position sensor. grey into C2 and dark blue into C3..

engine coolant temp sensor.. yellow into A13

oil temp sensor. dark green into C15

all three use the same black wire into PIN B18 of the PCM

yellow should have 5.0 volts..

black should be grounded thru the computer... along with the other sensors mentioned above..

so.. could you have lost a ground connection to the computer and the black wire connection thru the computer..???

key on.. sensor plugged in... how much voltage on the black wire..

key on sensor plugged in... how much voltage on the yellow wire..

ohm from the pins thru the wire to the end of the sensor connector..

Post Reply
